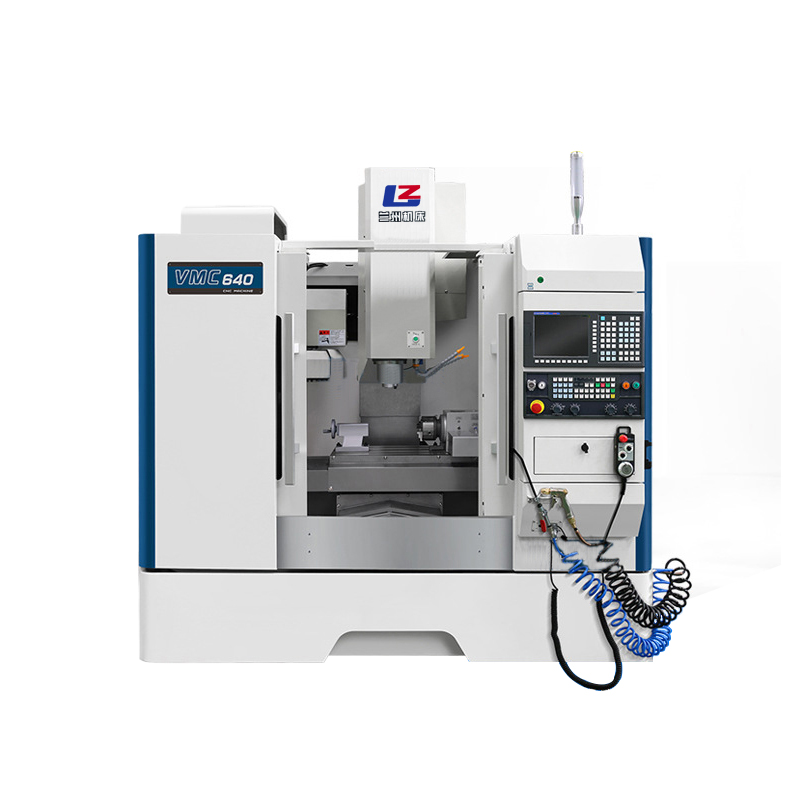

Specifications | Units | VMC640 |
工作台尺寸Table size | mm | 800x300 |
X轴行程X axis travel | mm | 600 |
Y轴行程Y axis travel | mm | 360 |
Z轴行程Z axis travel | mm | 450 |
工作台最大承重Max. worktable load | kg | 300 |
T型槽（数量-宽度-间隙） T slot(number-width-pitch) | 3-16x90 | |
主轴转速Max. spindle speed | rpm | 8000(Optional:10000 ) |
主轴锥度Spindle taper | mm | BT40 |
主电机功率Main motor power | kw | 5.5 |
X/Y/Z轴快移速度 X/Y/Z rapid traverse speed | m/min | 24/24/20 (Optional:48/48/36 ) |
切削进给速度Cutting feed speed | mm/min | 1-10000 |
导轨形式Guide rail type | Linear rail | |
主轴中心到立柱表面距离 Distance from spindle axis to column surface | mm | 410 |
主轴端部到工作台表面距离 Distance between spindle nose and worktable surface | mm | 100-550 |
定位精度Positioning accuracy | mm | ±0.0075 |
重复定位精度Repeat positioning accuracy | mm | ±0.005 |
刀库Tool magazine | 16Armless/(Optional: Arm 24 ) | |
刀具最大直径Max. tool diameter | mm | φ90 |
刀具最大重量Max.tool weight | kg | 8 |
机床重量Machine weight | kg | 3000 |
外形尺寸Overall dimension | mm | 1900x1700x2100 |
