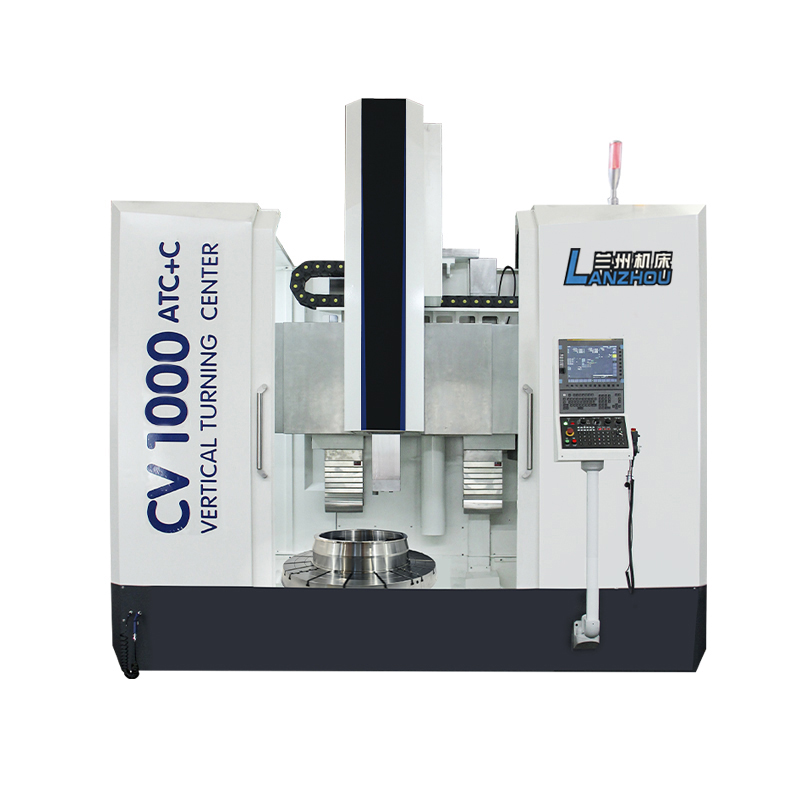

项目Specification | Unit | CV1000ATC | CV1250ATC | CV1600ATC | CV2000ATC | CV2500ATC |
盘面直径 Table Diameter | mm | 1000 | 1250 | 1600 | 2000 | 2500 |
最大回转直径 Max. Swing Diameter | mm | 1350 | 1600 | 2000 | 2500 | 3000 |
最大切削直径 Max. Cutting Diameter | mm | 1100 | 1350 | 1800 | 2300 | 2800 |
最大切削高度 Max. Cutting Height | mm | 900 | 1300 | 1300 | 1600 | 1600 |
最大切削重量 Max. Cutting Weight | Kg | 4000 | 5000 | 8000 | 10000 | 15000 |
最大刀库载重 Max. Tool Magazine Capacity | Kg | 600 | ||||
X向行程 X-Axis Travel | mm | -350,+700 | -100,+850 | -100,+1100 | -1000,+1400 | -900,+1600 |
Z向行程 Z-Axis Travel | mm | 800 | 900 | 900 | 1200 | 1200 |
横梁上下行程 Crossbeam Vertical Travel | mm | 500 | 800 | 800 | 1200 | 1150 |
X/Z快速进给 X/Z Rapid Traverse | m/min | 12/10 | 12/10 | 12/10 | 10/10 | 10/10 |
主轴最大扭矩 Max. torque of spindle | N.m | 8496 | 8607 | 19677 | 55158 | 68849 |
定位精度 Positioning Accuracy | mm | ±0.007/500 | ||||
重复定位精度 Repeatability Accuracy | mm | ±0.005 | ||||
占地 Floor Space | mm | 4000*4800 | 4600*5200 | 5550*5530 | 6850*4650 | 7550*5130 |
机床高度 Machine Height | mm | 4850 | 5400 | 5400 | 6270 | 6650 |
重量 Weight | Kg | 20000 | 22000 | 24000 | 49000 | 55500 |
